| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Driven Type | Electric |
| Material | Metal |
| Condition | New |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
We have well-organized warehouse that is divided into specified areas according to technological operations in order to automate inbound, outbound and in-stock operations. This helps us in making quick deliveries in the shortest time span. It is due to our guarantee of providing damage-free products to the clients; we are highly in demand amongst the buyers. Our packaging experts keep a stringent check on the entire packing procedure ensuring the same.
Salient Feature of Drilling Machine
- 34 Years well experienced engineers & technicians creates excellent quality of machines.
- Double column construction for rigidity and effortless ceantring .
- Wide rang of 9 spindle speeds for drilling,tapping,reaming & boring operations.
- Gear Box Gears are made from 20MNcr5 materials with hardened & ground.
- Machines are inspected as per IS : 2199-162 standards.
- Dependable and accurate,supported by a nationwide after-sales service.
- Main spindle made from EN steel with 6 slots.
- Spindle running in a set of 3 No. best quality bearings,which permit vibration free rough boring.
- Arm,column & base rigidly built reinforcement ribs to reduce distortion and give long life.
- Base plate having built coolant tank.
Standard Accessories :
- Electrical Consisting of main Motor.
- Elevating Motor, Control Panel.
- Limit switch & wiring.
- Built in Coolant Tank
Optional Accessories :
- Heavy Duty Box Table
- Coolant Pump with Fittings.
- Machine Vice.
- Machine Lamp.
Model Code System
- P = Pillar Drill m/c
- 19/25/40 = Drilling capacity
- S = Square Head Model
- R = Round Head Model
- L = Long Spindle Travel
- A = Autofeed Model
- X = Xtra Heavy Model
Std. Accessory :
- Motor Pulley
- Tapper Drift
- Manual Book
- Drill-bit angle gauge
Extra Accessory :
- Electric Motor
- R & F Switch
- Drill Chuck
- Arbour
- Key-way Compound Slide
- Coolant Pump with tank
- Drill Vice
- Motor Belt
- Machine Lamp
Note : Dimensions, Design, Weight, & Specifications Can Be Change as Market Demands or Further Improvement of Machine Without Notice.
Additional Images
-

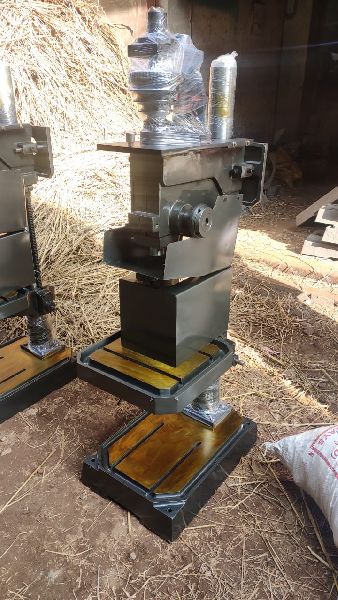

image 1
-

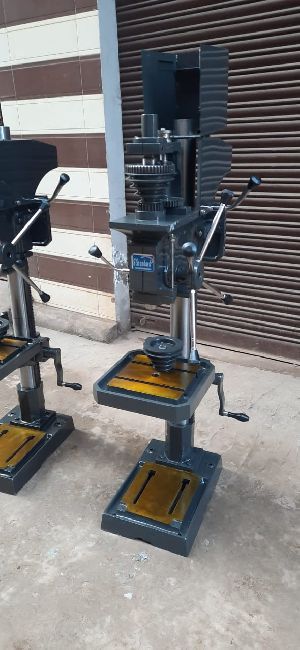

image 2
-

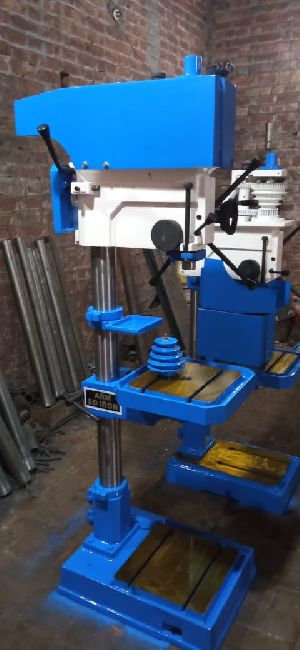

image 3
-

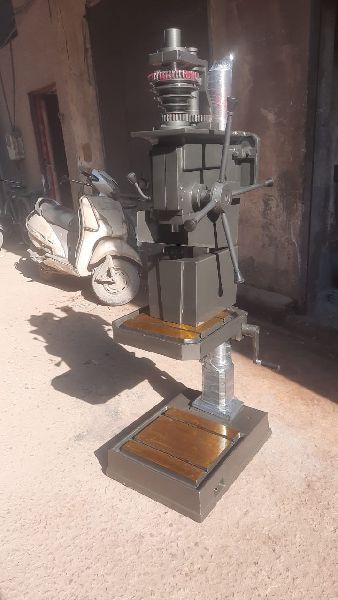

image 4
-

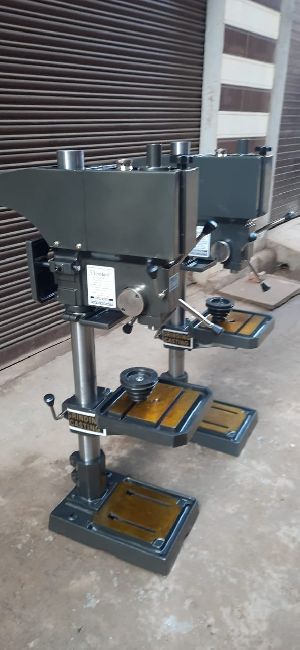

image 5
-
Technical Specification
| Specification | Model No. | ||||
| PSL-40X and PSL-40A* | PRL-40 and PSL-40 | PRL-25 | PS-25 | PR-19 | |
| Tilting working table | Fixed | Fixed | Upto 360° | Fixed | Upto 360° |
| Drilling capacity | 40mm | 40mm | 25mm | 25mm | 19mm |
| Pillar Diameter | 135mm | 121mm | 92mm | 92mm | 74.30mm |
| Spindle nose to table distance | 495mm | 595mm | 645mm | 660mm | 1660mm |
| Distance from Spindle nose to base distance | 1000mm | 1050mm | 1000mm | 1045mm | 900mm |
| *Autofeed speed : (applies to PSL-40A only) 0.04 or 0.08 | |||||
| Distance from spindle center to pillar surface (in mm) | 380 (Max.) | 320 (Max.) | 250 (Max.) | 250 (Max.) | 200 (Max.) |
| Table travel | 500mm | 480mm | 480mm | 480mm | 200mm |
| Taper in spindle | MT-4 | MT-4 | MT-3 | MT-3 | MT-2 |
| Number of Speed | 8 speed | 8 speed | 8 speed | 8 speed | 8 speed |
| Range of speed (RPM) | 60 to 2000 | 70 to 2000 | 70 to 2000 | 130 to 2600 | 87 to 3224 |
| Table Size (in mm) | 490 x 490 | 410 x 410 | 350 DIA. | 330 x 330 | 260 x 260 |
| Base Size (mIc Area in mm) | 820 x 490 | 440 x 715 | 255 x 310 | 365 x 575 | 480 x 300 |
| Overall Base Size (in mm) | 825 x 495 | 445 x 720 | 425 x 670 | 370 x 580 | 490 x 310 |
| Spindle Travel | 250mm | 250mm | 250mm | 180mm | 130mm |
| Pillar Length | 1475mm | 1450mm | 1400mm | 1410mm | 1170mm |
| Overall height with pulley guard | 1840mm | 1860mm | 1780mm | 1730mm | 1420mm |
| V-Belt section | B-74" | B-59 | B-51 | B-52" | A-42" |
| Weight (Approx.) | 500 Kgs | 325 Kgs | 250 Kgs | 225 Kgs | 100 Kgs |
| Motor 1440 RPM 3 Phase 440 Volts | 2 H.P. | 1.5 H.P. | 1 H.P. | 1 H.P. | 0.5 H.P. |
| Shipping wooden case inner size LxWxH | 1200x540x1860mm | 860x460x 1580 mm | 690x460x 1550 mm | 850x450x1770 mm | 660x380x 1440 mm |
