Twitter| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler |
| Type | Horizontal Boring Machine |
| Application | Commercial |
| Color | Mulit Colour |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details

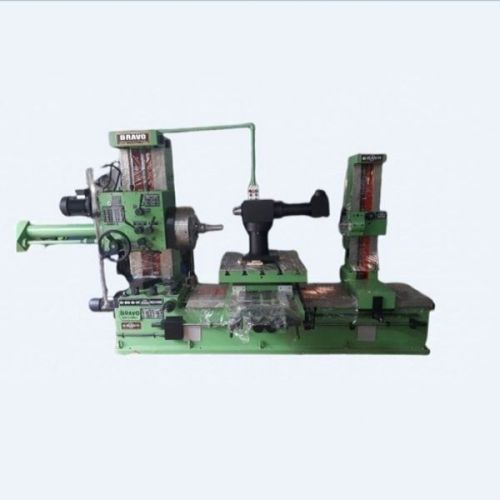

we are looked upon as one of the leading industrial boring machine exporters in india. horizontal boring machine, manufactured by us, endows with the best result and are highly durable and at the same time save time and cost to a lot of extent. The cnc horizontal boring machine is built to the optimum strength and perfection satisfying the multiple needs of the customers.
- bhbm-50
- bhbm-65
- bhbm-80
- bhbm-100
- bhbm-110
- bhbm-125
- bhbm-150
note : dimensions, design, weight, & specifications can be change as market demands or further improvement of machine without notice.
Technical Specifications
| Alloy Steel Work Spindle Hardened & Ground Diameter | 65 | 80 | 100 | 110 | 125 M |
| Morse Taper No. | 5 | 5 | 6 | 6 | 6 |
| Max. Movement of Workign Spindle | 400 | 450 | 500 | 500 | 600 |
| Max. Height of the Spindle Axis from Table Surface | 800 | 900 | 1000 | 1100 | 1250 |
| Min. Height of the Spindle Axis from Table Surface | 20 | 30 | 35 | 35 | 35 |
| Max. Cross Movement of the Work Table | 900 | 1000 | 1100 | 1300 | 1550 |
| Max. Longitudinal of Work Table | 1500 | 1600 | 1750 | 1900 | 2050 |
| Rotary Table Size | 800x900 | 900x1100 | 1050x1350 | 1100x1450 | 1200x1650 |
| Dia of Facing Head | 450 | 500 | 550 | 600 | 650 |
| Nos. of Spindle Speeds | 9 | 9 | 9 | 9 | 9 |
| Longitudinal Work Spindle Feed Nos. | 9 | 9 | 9 | 9 | 9 |
| Range of Spindle Speeds - R. P. M. | 15 to 300 | 15 to 300 | 22 to 225 | 22 to 225 | 22 to 225 |
| Traversal Table Travel Feeds (Inc. Rapid) | 8 | 8 | 8 | 8 | 8 |
| Long. Table Traverse Feeds (Inc. Rapid) | 8 | 8 | 8 | 8 | 8 |
| Rotary Table Automatic Feeds (Inc. Rapid) | 8 | 8 | 8 | 8 | 8 |
| Vertical Head Stock Travel Feeds (Inc. Rapid) | 8 | 8 | 8 | 8 | 8 |
Standard Accessories : Two Electric Motor 2 H.P. & 3 H.P. for 65 m.m., & 5 H.P. for 80 m.m. & 7.5 H.P. for 100 m.m., 3 H.P. for 110 m.m., & 3 H.P. & 12.5 H.P. for 125 m.m. (Siemens / BBL Make) Complete with Pennel Board & Pendent Control L & T Make, Facing Head, One Boring Bar, Support Guide for Vibration Control of Working Spindle, One Steel Telescope Cover for Bed Covering, One Handle, Lubricating Pump, 5 nos. Limit Switches, 4 Nos. Safety Clutches, Co-ordicate reading arangement with Scale Dials & Vermiers for X, Y, Z Axis.
Note : Dimensions, Designs, Rates & Specifications Can Be Changed as Market Demands or Further Improvement of Machine Without Notice.
