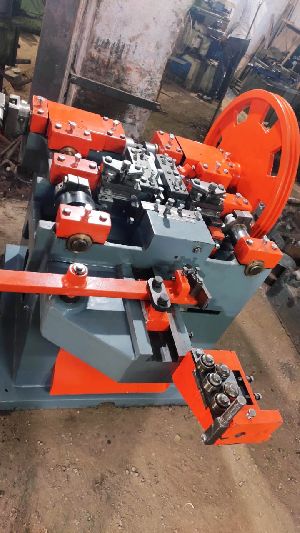

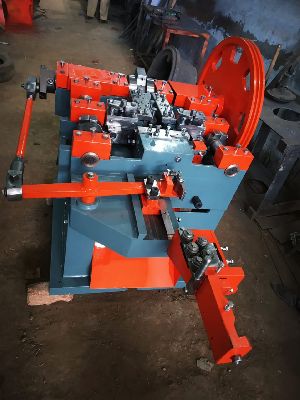

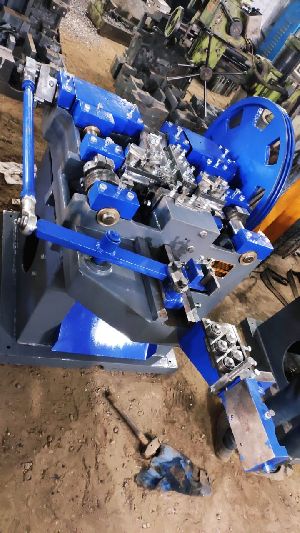

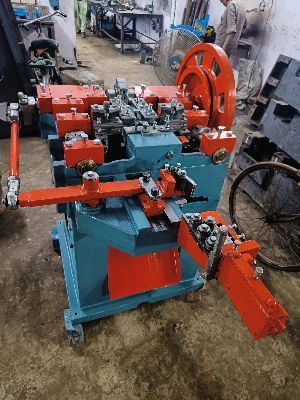

Nail Making Machine

Model: - BI-01

Capacity of nail to 1.5 12 to 38mm )

Wire Guage :- 18 to 14 SWG ( 1.2 to 2mm )

Production per minute pieces :- 400 to 450 H.P.

Reqd. :- 1.5 x 1440

Model: - BI-02

Capacity of nail :- Wire Guage: - 16 to 12 SWG ( 1.6 to 2.6mm )

Production per minute pieces: - 350 to 400 H.P.

Regd. :- 2 x 1440 Price:

Model: - BI-03

Capacity of nail :- 3/4. to 3. ( 20 to 8Ornm )

Wire Guage :- 14 to 9 SWG ( 2 to 3.7mm )

Production per minute pieces - 300 to 350 H.P.

Regd. :- 3 x 1440

Model :- BI-04

Capacity of nail :- 1. to 4. ( 25 to 100mm )

Wire Guage :- 12 to 8 SWG ( 2.6 to 4mm )

Production per minute pieces - 150 to 200

Regd. :- 5 x 1440

Model: - BI-05

Capacity of nail :- 1.5" to 5" ( 35 to 125mm)

Wire Guage :- 8 to 6 SWG ( 4 to 4.9mm)

Production per minute pieces :- 150 to 200 H.P.

Reqd. :- 7.5 x 960

Model:- BI-06

Capacity of nail :- 2" to 6" ( 75 to 150mm)

Wire Guage :- 8 to 4 SWG ( 4 to 6mm)

Production per minute pieces : 100 to 150

H.P. Regd. :- 7.5 x 960

Model:- GI-08

Capacity of nail - 3" to 8" (75 to 200mrn) )

Wire Guage :- 8 to 4 SWG ( 4 to 6mm)

Production per minute pieces : 100 to 120

Regd. :- 10 x 960

The accessories requir. for plant:

 1. Polishing Drum  The polishing drum is used for sourcing and polishing wire nails. tt revolves at 10 to 45 R.P.M having capacity 200 Kgs. per hour. It require 2 H.P. electric motor. Price of single barrel polishing drum is Rs. 35, 000.00

2. Grinding Machine  The grinding machine is specially design to sharpener and grinding the dies and cutters of the machine. k is fitted with four grinding wheels of different shapes a. special attachments. One H.P. x 2800 R.P.M motor is fitted in it. Price of grinding machine is Rs. 32, 000.00
